Adding 3D Building View to Report

If you want the 3D view of the building to be displayed from your desired angle in the calculation reports, follow the instructions below.

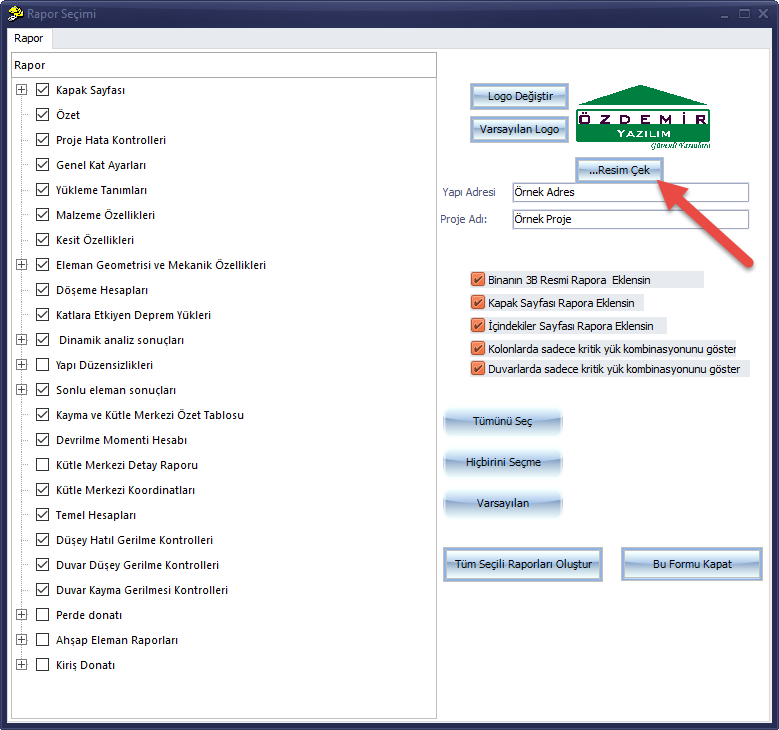

In the Report Selection screen, click the ...Capture Image button.

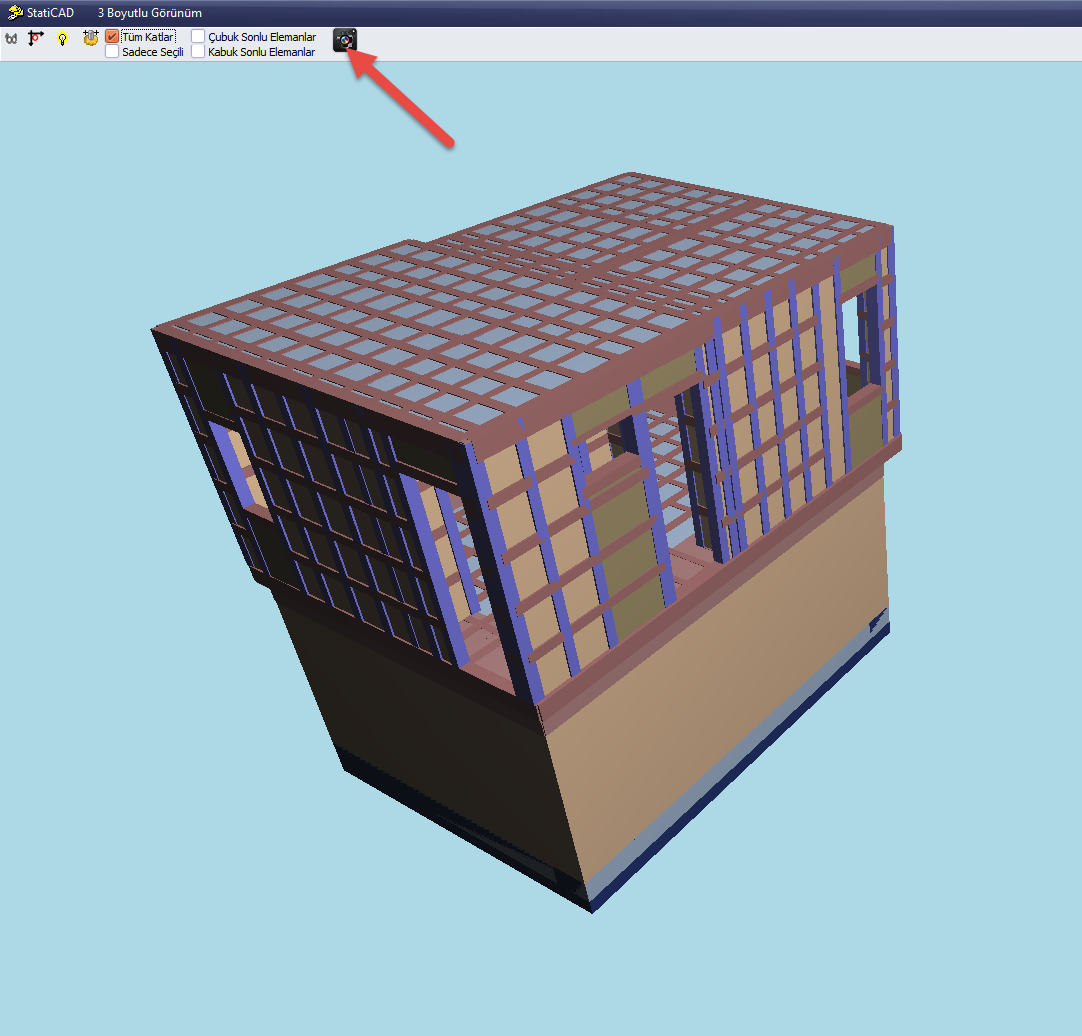

Then, make the 3D view full screen, adjust the 3D view to the angle you want the building to appear in the report, and click the capture image (camera) icon.

In the Report Selection Window, click the Generate All Selected Reports button.

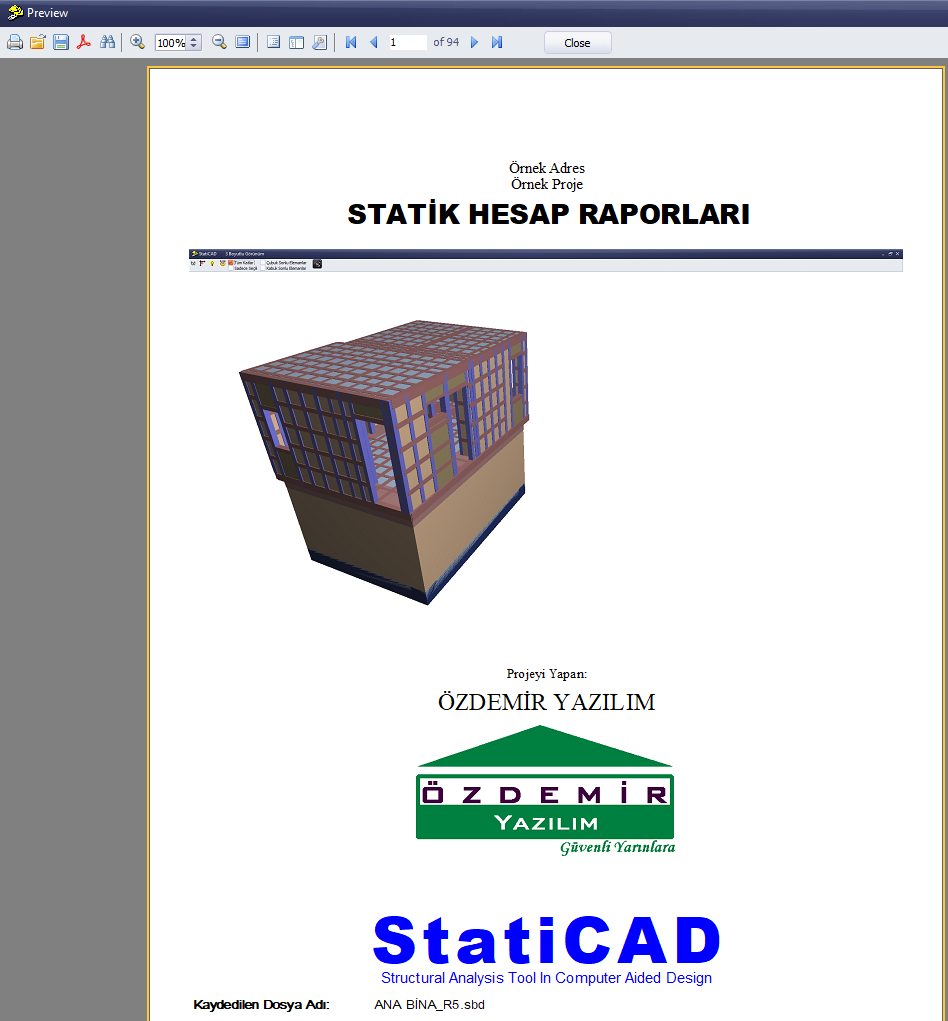

The 3D image of the building will appear in the generated report with the viewing angle you set.
